Stanley Wines
10/2016 - 04/2017 Accolade Wines
Company:
Winery Stanley Wines
NSW AUSTRALIA
Duration: October 2016 to April 2017
Project successfully completed for 2017 Vintage
Project Scope Steps

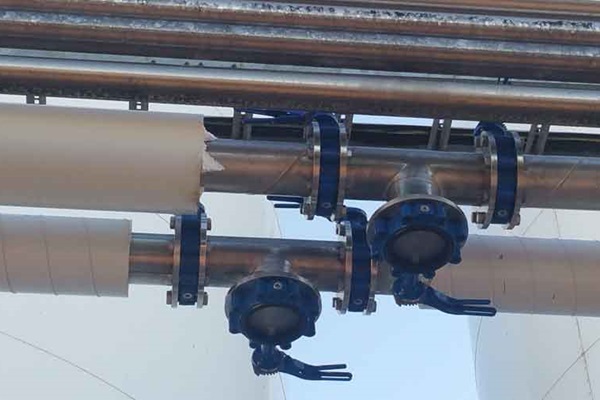

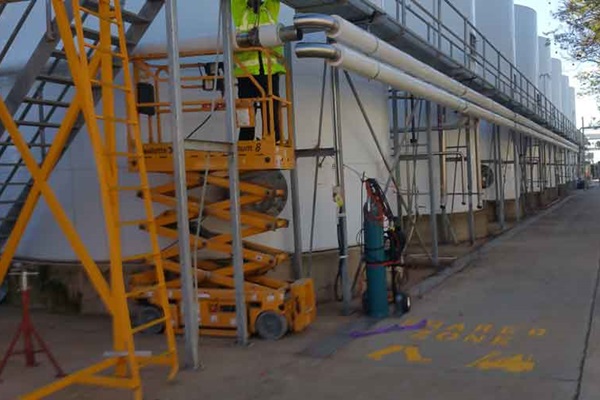

| Winery Brine line upgrade Remove aging 6" PVC Brine Lines Installation of 180m @ 150mm stainless steel Insulated lines |
| Relocation of Heat exchanger and pipe work installation Installation of 150m @ 150mm 304 stainless steel Install and connect piping to heat exchange |
| Stanley Site compressed Air upgrade Installation of 3 @ air receivers Installation of filters, valves and connections Installation of 150m @ 101mm 304 stainless steel pipe work Connections to new compressor |
| Press lines in from winery locations Installation of 1.4km of 76mm 304 stainless steel line Installations of 8 @ 40m lines 101mm 304 to service new location |

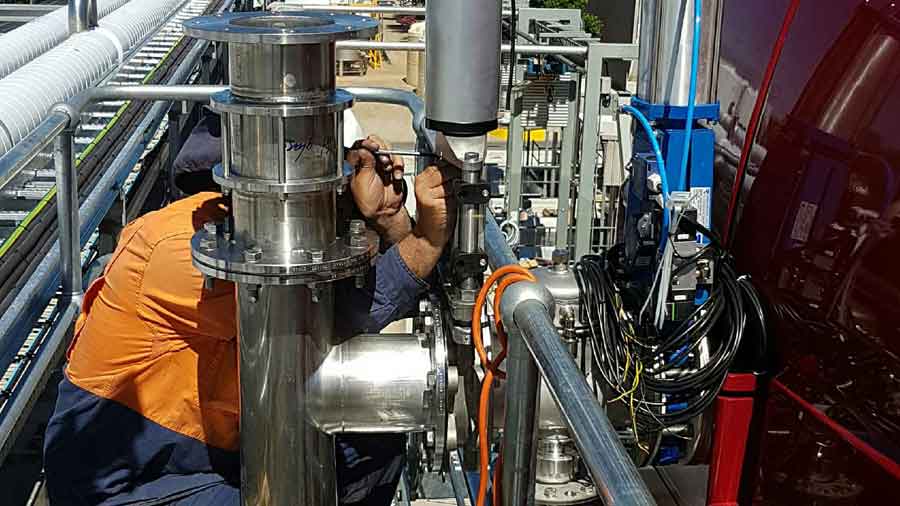

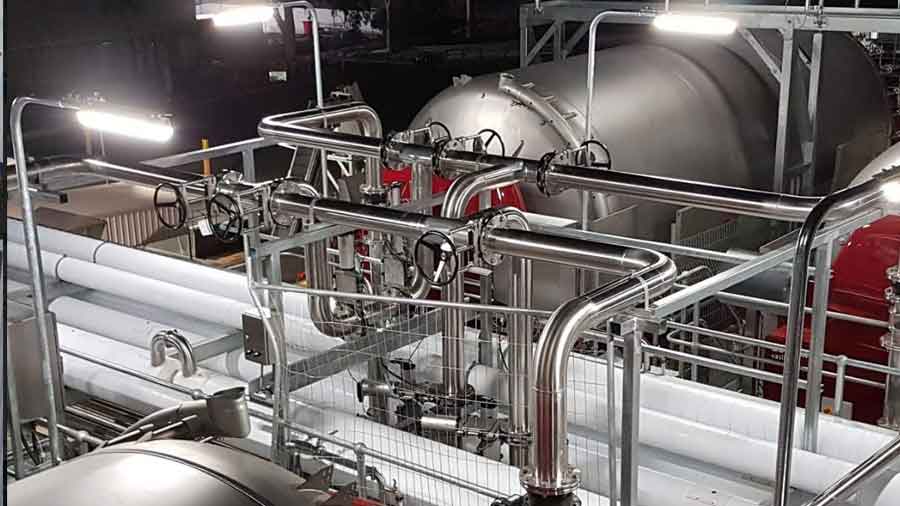

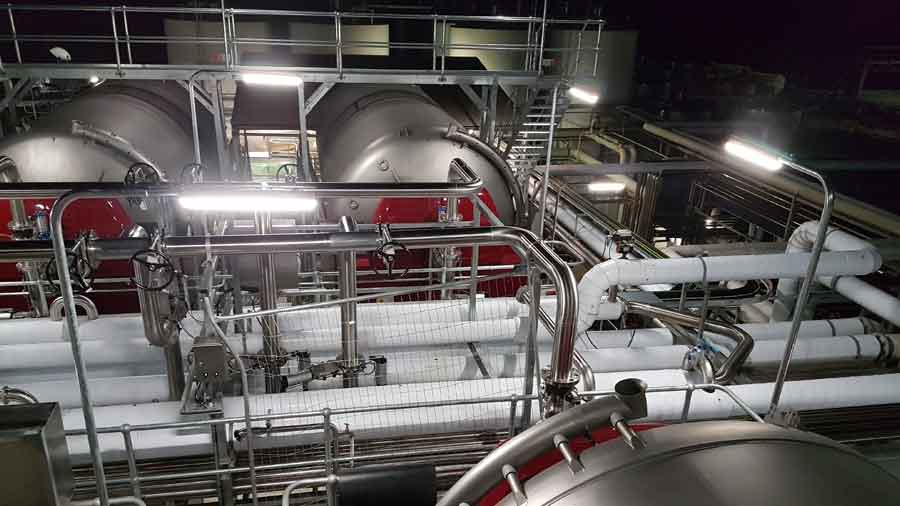

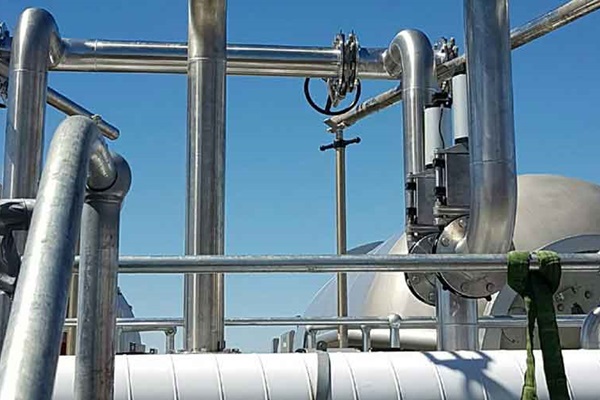

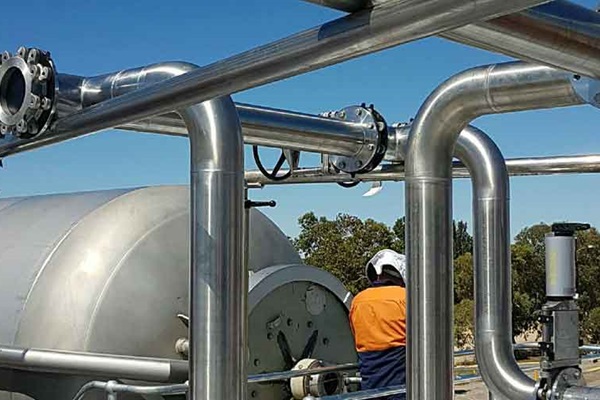

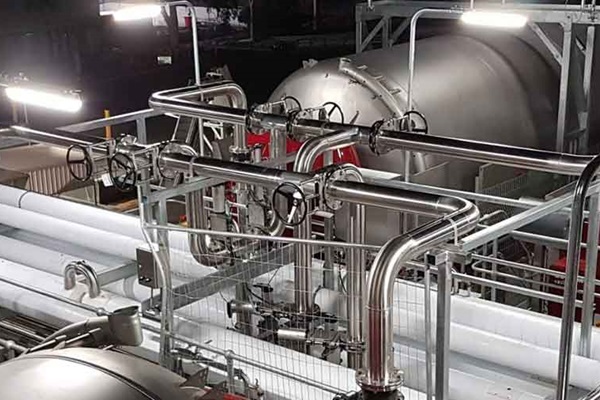

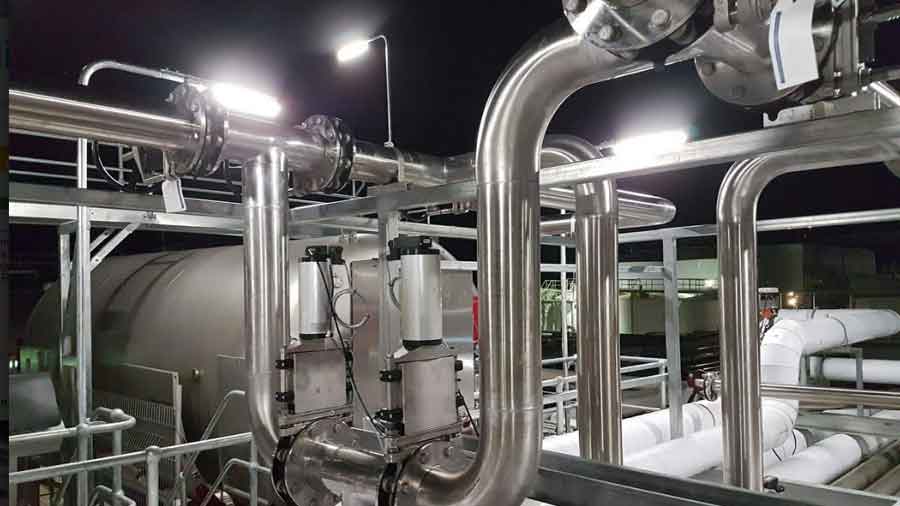

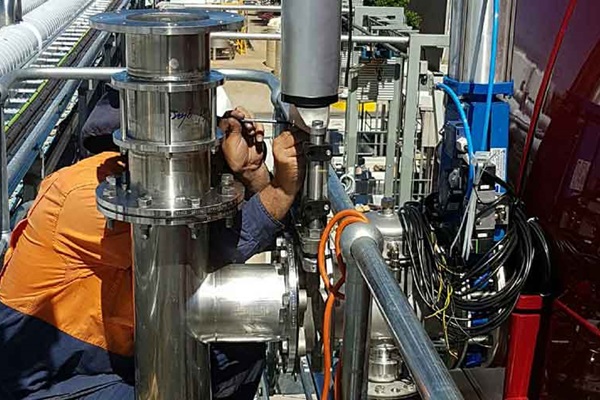

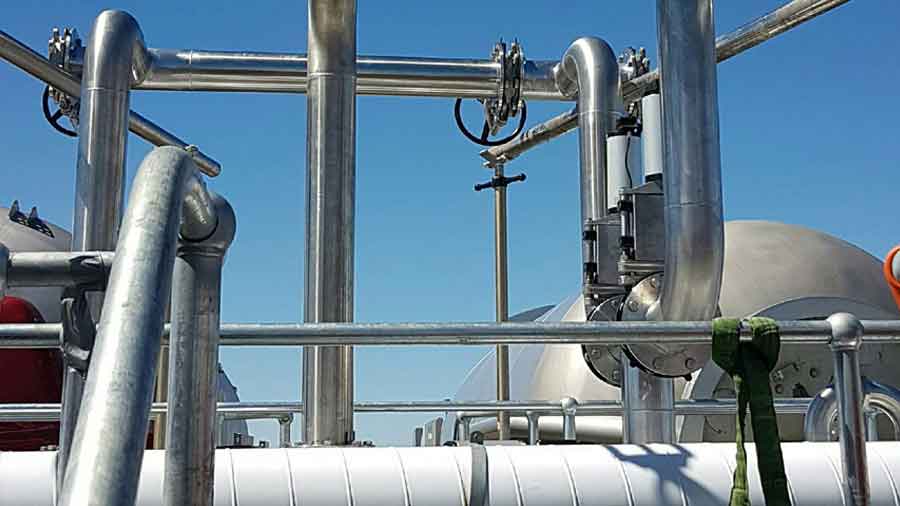

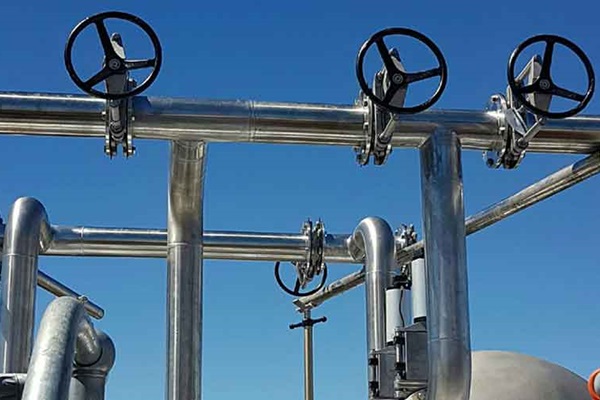

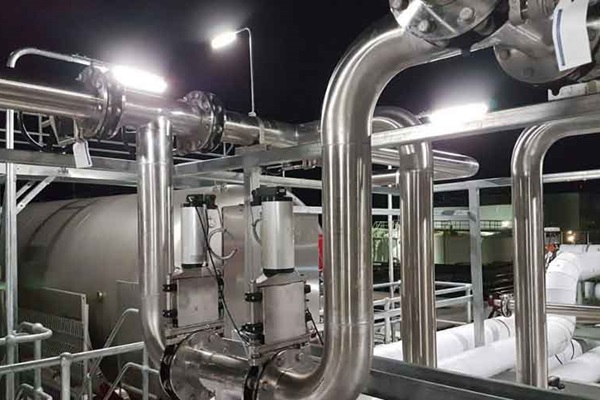

| Press product feed lines Installation of Press 150mm stainless steel product lines Installation of Press Knife gate valves, site glass and eliminators |

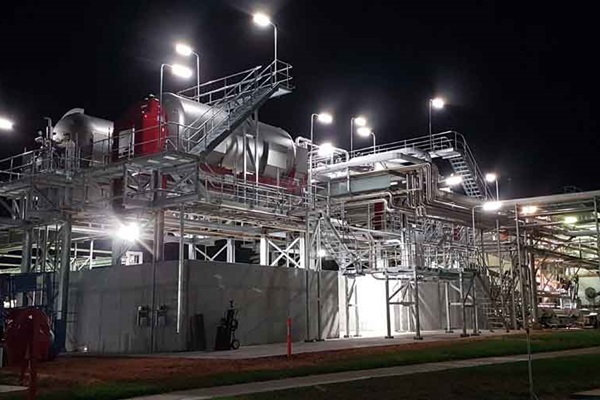

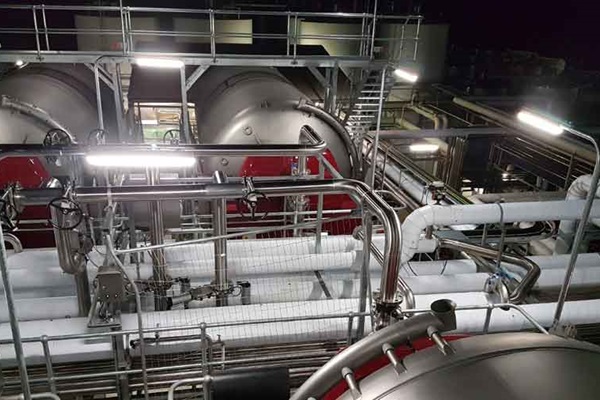

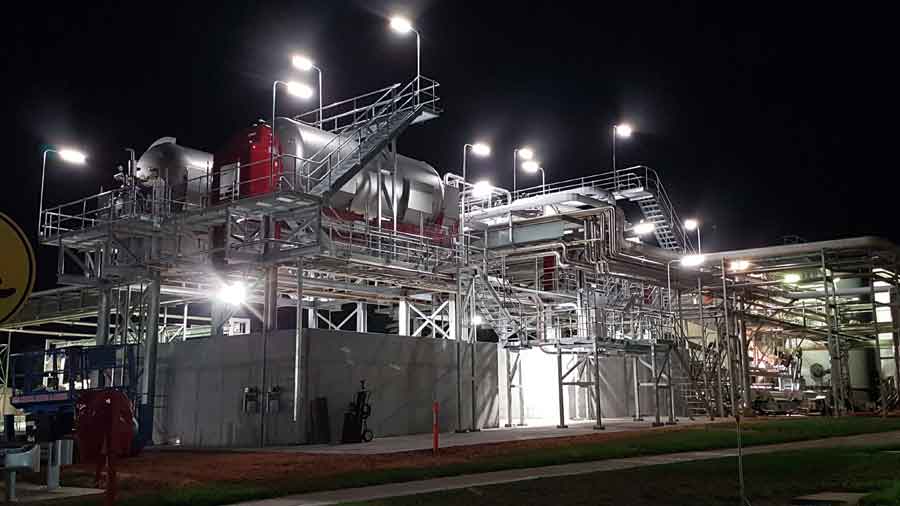

| Installation of all services to 4 new Bag Press Installation of all copper water services to press area and catwalks Installation and connections to Press Air lines |
| Press drain lines to ground Installation of 101mm drain lines |

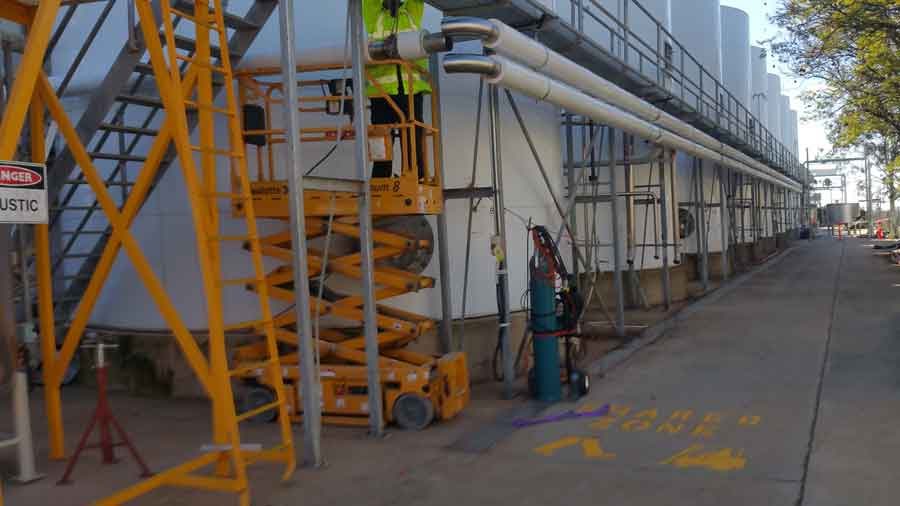

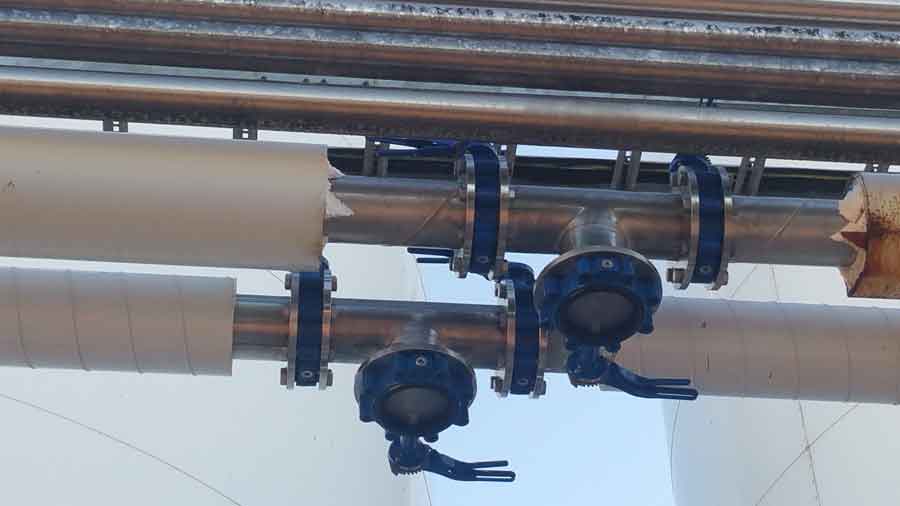

| New Tank Farm storage Installation of 76mm copper water through out tank farm Installation of 50mm valved stainless steel water outlets Installation of 300m @25mm Nitrogen lines to tank farm Installation of 76mm stainless steel air mains Installation of 150mm stainless steel Brine mains and manifolds Installation of Ground to catwalk 50mm stainless steel riser Installation of Catwalk water lines and out lets Installation of Catwalk Mixed gas line |
| Piping of cool room 2 Installation 76mm stainless lines and valves |
| 600 block Yeast 120m 76mm valved lines |
| Stanley float Shed pipe work Install 76mm stainless pipe work Install 51mm water services Install 51mm and 25mm stainless Nitrogen and mixed gas Install fire hose pipe work |
